Overhead Transmission Hydraulic Laying Puller Max Intermittent Pull 90kN

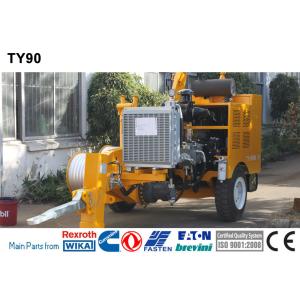

TY90 Hydraulic Puller
- This machine allows for the tension stringing of twin-bundle conductor of 500mm2 and below in mountainous and hilly areas, of twin-bundle conductor of 630mm2 and below in flat lands, and of single conductor 720mm2 in various terrains;
- Besides, it can be used for traction stringing of OPGW or ADSS optical cable and 220kV haulage rope in various terrains.
| Performance |
- Max continuous pull: 80kN
- Max intermittent pull: 90kN
- Max speed: 5km/h
- Pull at max speed: 40kN
- Speed at max pull: 2.5km/h
|
| Characteristics |
- Total weight: 4680kg
- Overall dimension (length*width*height): 4000×2200×2100mm
- Max rope diameter: 21mm
- Bull-wheel diameter: 540mm
- Groove number: 8
- Max diameter of rope reel: 1400mm
|
| Main configuration |
- Engine: Cummins
- Tail bracket hoisting motor: American Eton
- Hydraulic pump: German Rexroth
- Speed reducer: German Rexroth / Italy Bonfiglioli
- Hydraulic meter: German WIKA
- Operating handle: German Rexroth
- Main motor: German Rexroth
|
| Engine |
- Electrical system: 24V
- Diesel: 118kw(158hp)
- Cooling system: water
|
| Additional Devices |
- Lighting system for the trailer
- Extra shaft
- Hydraulic rope clamp for reel change
- Swivel guide rope roller
- Digital speed and meter counter (extra charge)
- Trailer for towing at max speed of 15 km/h
|
| Configuration |
- Hydraulic oil cooling system
- Hydraulic dynamometer with set-point and automatic control of maximum pull
- Grounding connection point
- Hydraulic front stabilizer
- Hydraulic oil cooling system
- Control instruments for hydraulic system and diesel engine
- On board reel winder with automatic level wind, suitable for standard reel mod. 1100 and 1400
|
| Hydraulic Transmission |
- Closed hydraulic circuit for step less speed variation in both rotating directions.
- This machine is provided with a pull pro-setting system that maintains the pre-set pulling value (also when the speed is reduced to "0") by automatically adjusting the operation speed according to the friction and unexpected loads which may occur.
|
